Pallet Flow Rack Can Be a Warehouse Manager’s Best Friend

When properly designed to meet the specific inventory and storage requirements, pallet flow racks maximize storage space and improve shipping logistics.

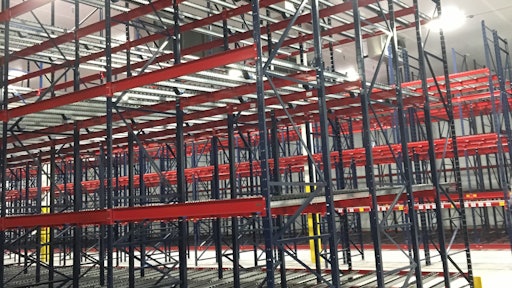

Steelking Pallet Flowwcap
Steel King

Any warehouse or distribution center with limited floor space that needs high-density storage or automatic rotation of inventory on a first-in, first-out (FIFO) basis can benefit by implementing pallet flow storage racks.

However, achieving the full performance capabilities of this type of rack system requires careful planning and implementation. When this is done properly, pallet flow systems can be the warehouse manager’s best friend; without it, the system may underperform expectations.

Simply defined, this type of racking system is designed so that when the pallet in front is removed by a forklift, the pallets behind gently “flow” forward to replace it. Inclined tracks, rollers and brakeswith an assist from gravityare used to accomplish this task. New inventory is then loaded at the back end of the rack, facilitating FIFO product rotation, which is particularly valuable for items with expiration dates.

In this type of “dynamic” racking approach, goods can be stored three, 10, even 20 pallets deep and on multiple levels.  This eliminates the need for wide aisles between every row of traditional “static” rack required for forklift access and maneuverability.

By storing more palletized goods in less space, facility managers can dramatically increase the amount of inventory in a specific warehouse footprint or, on the flip side, reduce the amount of space required for new warehouse construction.

Compared to traditional fixed racking, a high-density pallet flow system can essentially cut the required square footage for a warehouse in half. The savings can be significant in terms of reduced property and building costs.

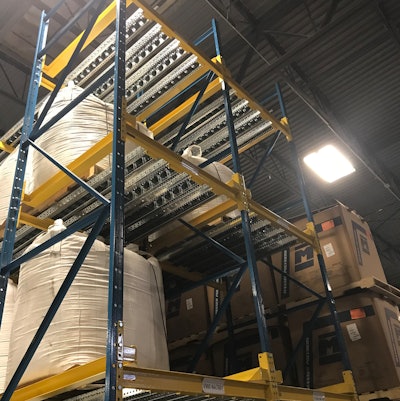

In this type of 'dynamic' racking approach, goods can be stored three, 10 or even 20 pallets deep and on multiple levels.In this type of "dynamic" racking approach, goods can be stored three, 10 or even 20 pallets deep and on multiple levels.Steel King

There are substantial logistical benefits to using a dynamic rack system as well.

Pallet flow rack can drastically reduce the labor required to pick pallets, because a forklift is only needed for initial loading of the pallets as well as final unloading. With static racks, forklifts must travel further down aisles and often must spend time rearranging inventory to access the correct items.

When a large number of pallets with a single product SKU are routinely loaded into trucks, locating the pallet flow rack near the loading dock can also minimize the distance that forklifts travel to as little as 20 feet each way, which speeds material handling.

Even pallets with varied SKUs that are being shipped to the same location can be located near each other to further speed truck loading.

Designing to Meet Specific Requirements

Although the concept of a pallet flow rack may seem straightforward, installing a system that optimally meets a specific warehouse’s requirements takes some planning and collaboration with the vendor.

Many people think you can take pallet flow rack off the shelf and ship it out the door. But, it must be designed to accommodate your specific requirements: pallet types, pallet weights, forklift capacity, facility layout and any other restrictions.

Some racking distributors are willing to supply a price quote without fully understanding the requirements of the application. And, not every vendor asks questions to find out what the user needs.

The process ideally begins by understanding the facility’s dimensions, obstructions, types of inventory and forklifts, as well as truck loading and shipping requirements. It is vital to build the flow rack to take advantage of your warehouse’s full height, width, depth and floor plan. Obstructions like low ceilings or the location of sprinklers, building columns, doors, lights and vents must be built around.

It is also important to consider the brand, lift height and weight capacity of the forklifts used at the facility. In general, a forklift’s lift and push/pull capabilities diminish the higher it raises a pallet. A forklift can cost as much as $100,000, so you want to be sure your new pallet flow racks work with the ones you have, or you could have to acquire new forklifts.

In terms of tailoring a pallet flow system to an application, it is necessary to plan for efficient flow storage, loading/unloading and transport.

Forklift travel distance can be minimized with proper pallet flow planning. For example, you don’t have to travel hundreds of feet to pick a pallet if you install the pallet flow rack in the ideal location. You may only have to travel 20 feet to pick a pallet, and when you return, the next pallet is waiting. This minimizes labor as well as speeds loading and unloading.

Similar planning should be applied to storage depth. Just because the system can be designed 20 pallets deep, doesn’t mean it should be. Instead, it should be designed and grouped to simplify loading/unloading, as well as optimal product rotation.

Even some aspects that might seem like smaller details, such as the type of pallet, are important because they affect how pallets “flow” in the system. There are too many types of pallets with different dimensions today, and it could affect the type, and cost, of the pallet flow rack required. I’s not enough to design on the assumption that a standard 40-inch or 48-inch pallet will be used. If the actual pallet has different dimensions, it could increase costs significantly.

With all the aspects that must be considered to get the best results from your flow rack, it can be helpful to work with a vendor that provides one point of contact for planning, coordination, answering questions, troubleshooting and resolving any issues. This is far simpler than interacting with a separate pallet flow manufacturer, rack manufacturer, as well as dealer and installer.

Given sufficient planning and coordination, pallet flow rack can be one of the most space efficient and cost effective forms of material handling for warehouses and distributors.
