TCL Deploys ForwardX AMRs for 5G-Enabled AMR Project

TCL installed dozens of ForwardX Max 300 Lift autonomous mobile robots to automate the movement of materials across the production facility.

Forward X Tcl 1

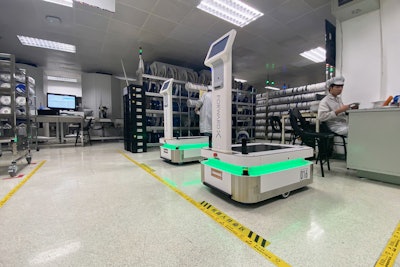

The Huizhou factory of Chinese multinational electronics company TCL installed dozens of ForwardX Max 300 Lift autonomous mobile robots (AMRs) to automate the movement of materials across the production facility. So far, the project has resulted in improved productivity across the production process, less labor dependency for material handling and a quicker inventory turnover. The AMRs connect and communicate through a 5G network set up as part of TCL’s 5G+ Smart Factory Initiative.

Located in the Huizhou Zhongkai High-tech Development Zone, TCL’s operation center serves as the central point of TCL’s global supply chain and manufacturing. Boasting the second largest production capacity in the world, the facility looked toward 5G and intelligent robotics to elevate its performance to a new level.

“We believe in and promote the use of intelligent automation, such as AMRs to support our factories globally by empowering their operations and automating unfulfilling work,” says Caijun Zhao, head of the president’s office for TCL Industries Holdings. “The project (with ForwardX) has been successful so far with seamless collaboration between the AMRs, workers, machines and loading carts.”

Before beginning the project, TCL’s management identified four main pain points to tackle in the supply chain management of the TCL Operation Center:

·        Lack of flexibility. The storage of vital materials was scattered across the facility and, with the seasonal and fluctuating nature of demand, this made changing production processes slow and more complex.

·         Network issues. Using Wi-Fi networks across the facility caused a number of blind spots, which made operational visibility. The factory wanted a real-time view into and control of their intralogistics processes.

·         Dependency on manual processes. A low level of automation meant that most material handling tasks were carried out by factory operators. This resulted in high labor costs and left TCL vulnerable to shifting trends in wages and labor availability.

·         Facility complexity. Full of people, moving equipment, production machinery and material carts, the SMT workshop was a complex environment that made errors commonplace. Furthermore, due to its complexity, the facility was unable to improve efficiency.

TCL completed the project rollout in March 2020 with China Mobile acting as the network service provider and ForwardX Robotics as the intelligent automation provider. As the world’s first 5G-enabled AMR project, TCL’s collaboration with ForwardX has been recognized across China as the first of its kind with it winning MIIT’s Bloom Cup, an accolade given to projects promoting the commercial 5G applications.

In order to achieve unmanned movement, material flow through the facility consists of the following steps:

·         Using 5G, TCL’s manufacturing execution system (MES) pushes production plans out across the facility;

·         The lineside warehouse picks, prepares, and organizes materials according to the production plan;

·         The lead time and safety stock levels are set according to production capabilities and AMRs are triggered to deliver material to machinery;

·         AMRs automatically navigate to the designated pick-up point where the autonomously dock to and lift material carts, before travelling across the facility;

·         At specific drop-off points, the AMRs stop and await a corresponding factory operator who removes the required materials and confirms receipt through the onboard GUI;

·         Once a batch is complete, the MES triggers the AMRs to travel to machines to pick up finished goods.

·         The AMRs travel to the pick-up location and picks up the finished goods before travelling to the warehouse.

When considering the solution, the facility’s management made safety a top priority for evaluating solutions. With a large workforce operating across a busy environment, TCL needed a solution that could offer comprehensive safety features to avoid accidents and keep their staff protected. Offering 360-degree obstacle detection and avoidance through laser- and vision-based sensing, ForwardX’s Max 300 Lift robots offered the kind of safety guarantees that the global electronics manufacturer was looking for.

“When considering solutions, safety is an important factor for us, because our production lines consist of a lot of machines and our environment is highly dynamic with a lot of moving pieces, such as material carts,” says Zhengwei Cai, project manager and senior engineer for TCL. “Therefore, obstacle avoidance and safety functions are very important to us. With ForwardX, the AMRs calculate optimal routes and automatically detect, identify and avoid collisions with any kind of obstacle.”

After such positive results for the 5G Smart Factory initiative, TCL is evaluating the use of more ForwardX mobile robots for intralogistics workflows, such as raw material delivery, work-in-process transfer and finished goods storage in their other production locations. The goal to achieve unmanned material flow through their manufacturing facilities remains strong and TCL will continue to work closely with ForwardX to reach industry 4.0.
