Interroll is Rolling out New Drive Solutions to the Americas

Interroll is focusing on data, greater precision and improved power efficiency with new DC Platform in the Americas.

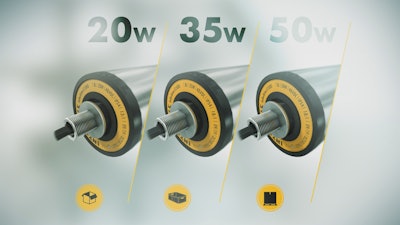

Watt Variant Overview

Conveyors have long been the work-horse of the material handling industry. Transporting packages, improving workflows, and interfacing with other automated solutions to drive real efficiency in warehouses and manufacturing environments. Today, the requirements placed on zero-pressure-accumulation conveyor systems are becoming more demanding in terms of their technical performance. They need three things: more data, higher precision and improved power efficiency. With the DC Platform, Interroll has developed a powerful technology platform that fulfills these requirements in an exemplary manner.

"With the new DC Platform, system integrators and Original Equipment Manufacturers in the Americas can now choose from an innovative, coordinated range of conveyor technology solutions from a single supplier, all based on years of development and testing," explains Steven Leavengood, vice president of sales and service at Interroll USA. "This technology allows a more customized and user specific approach to meeting throughput needs, data management, power savings, and more. By addressing these specific market needs we strive to revolutionize conveyor performance.”

The DC platform is capable of collecting 100+ parameters of Data from the conveyor system which will drive improved performance and maintenance. This level of visibility provides quick system optimization and flexibility. The DC Platform also allows for precision positioning of totes and goods. This is critical for robotic applications and other situations where millimeter-accurate placement is required. Lastly, the DC Platform includes options for 24V or 48V power. With 48V, our customers can see a significant reduction in equipment needed to power their system – resulting in savings for both maintenance and components.

The new platform will be used to create a range of conveying solutions, from conveyors that can be commissioned without a programmable logic controller (PLC) using plug-and-play, all the way to tailor-made, high-performance systems that can be consistently and transparently integrated into the data universe of Internet of Things 4.0 apps.

  • The new modular platform makes it possible for system integrators and plant constructors to design conveying systems according to customers' requests in both 24 V and 48 V versions. It has been adopted by automotive manufacturers. 48 V systems therefore enable the use of up to 50% fewer power supply elements than in 24 V systems. Interroll’s new modular Power Supply also enables the use of smaller wire cross-sections and longer wire lengths, and reduce the number of error sources, for instance as a result of voltage drops on the wires. This significantly reduces the investment required in the entire system and the risk of errors during commissioning.
  • The new RollerDrive EC5000 also offers more flexibility in terms of its mechanical output power. The new motor rollers are available in 20 W, 35 W and 50 W versions that can take on any transport tasks for light or heavy goods. To support the implementation of conveyor solutions for heavy goods, Interroll offers the 50 W power option as well as a RollerDrive version with tubes measuring 60 mm in diameter instead of 50 mm. What's more, the well-known IP66 and Deep Freeze design options are available; these enable RollerDrive solutions to be implemented even in areas that are cleaned using powerful water jets or that reach temperatures as low as -30° C.
  • Alongside the analog interface, the EC5000 can be supplied with a bus interface based on the CANOpen standard, upon request. This means that modern conveying systems can offer data transparency for the first time. In combination with an Interroll control system with multi-protocol capability (PROFINET, EtherNet/IP and EtherCat), this means that users can consistently visualize a range of information and functions on the screen using the PLC or a web interface. One example is the display of general information about the current operating state and the operating load of the individual drives over time. In parallel, the control systems enable a range of detailed information such as precise error statuses, torque or temperature, for instance, to be read out for each individual drive.

    At the same time, the new RollerDrive's bus interface enables users to carry out completely new control functions that are required in an automated environment. As a result, users can control the acceleration, speed and deceleration of the conveyed goods in the system more precisely. This solution also allows them to position the relevant goods on the conveyor to the nearest millimeter—a key requirement in order to guarantee seamless conveying interplay between the conveyor solution and robots or automated gripper arms.
