Owens Corning Adopts Next-Generation Hooder Film from Signode to Reduce Water, Condensation Damage

Owens Corning turned to Signode to install its next-generation hooder film to reduce water and condensation damage to Thermafiber Mineral Wool.

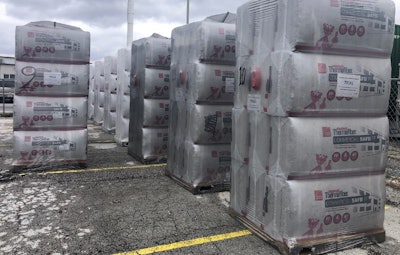

Owens Corning Joplin Outdoor Storage Trials Winter
Owens Corning

When selling protection, it stands to reason that the product itself better be well protected. In the case of Owens Corning, the brand and product integrity of its Thermafiber Mineral Wool required research and rigorous testing to figure out the best solution to meet the outdoor storage needs of an insulation solution quickly gaining traction in North America.

Thermafiber is said to be one of the world’s most specified mineral wool brands. In wide and productive use for more than four decades in the EU, Russia, and Asia-Pacific, the material is an alternative to traditional fiberglass insulation. Its enhanced fire protection control has led to its use across a range of important commercial development projects, most notably One World Trade Center in New York; Goodyear World Headquarters in Akron, Ohio; and the Bullitt Center in Seattle.

Commonly referred to as mineral wool or rock wool, Thermafiber’s strength, fire-protection abilities and ecologically-friendly profile stem from how it’s made and from what it’s made from -- basalt and recycled slag, a byproduct of the steel-making process that otherwise would be landfill-bound.

As Owens Corning was seeking to more widely produce, store and distribute Thermafiber in the United States, it found that this exceptional material was hampered due to the commodity plastic film in which it was wrapped. Water and moisture were degrading the product’s integrity, leading to a host of undesired impacts at construction sites, namely material that required “drying out” before its installation. Warehouse and storage space in the United States is at a premium; the necessity of outside storage required a new film solution.

“Overseas they used hooder film applications to wrap the material, so we did the same here, and what we saw was that moisture would seep down the inside of the hood and then inside the individual packs,” says Doug Compton, packaging development leader, advanced manufacturing, Owens Corning Science & Technology. “For a porous product made of an inert earth mineral, we didn’t want our customers to say, ‘Hold on, this doesn’t feel like our regular product.’”

Compton anticipated that this may be an issue and began researching products that would control moisture. As a long-standing member of the Institute of Packaging Professionals (IoPP), he was able to leverage its services and networking to learn from other experts, including packaging engineers from the U.S. Army, who had lots of experience in dealing with moisture control issues.

This due diligence eventually led him to discover a film called Xeros sold by Signode.

Noting that he was using a hooder from a different manufacturer, he was intrigued by the Xeros film’s promise of protecting loads from outdoor elements while reducing moisture. The patented Xeros film offers 10-sided (five outside surfaces plus five inside surfaces) waterproof protection and claims that it enables manufacturers to store loads outdoors or ship on flatbed trucks without fear of product damage.

For the 20-year-plus industry veteran, it would become an issue of test and verify (and test again) spanning nearly two years. The first study involved on-site testing at a hooder manufacturer lab over three months of Xeros against a commodity grade material.

“We hooded products side by side on two identical products, set them side by side, and came back three months later,” says Compton. “I stood in front of the trial pallets and observed that one had a significant amount of moisture under the hood film, and the other looked fairly dry. I realized something positive was happening and was worth further investigation."

That further investigation -- ensuring that this initial visible test could be verified by more empirical data -- led Compton to conduct several tests at Owens Corning Thermafiber’s Joplin, Mo., plant involving Bluetooth-connected temperature/RH logging sensors encased in custom-built housings. Comprising 15 units, the sensitive devices were able to track and offer remote access to the differences in temperature, relative humidity and dewpoint of Xeros versus a variety of commodity films.

“We designed the experiment, established new protocols and worked together to collect the data. It was a true team approach working with the Joplin plant that allowed us to accurately collect and assess this important data,” says Compton.

After several rounds of direct testing against additional competitive materials of similar thickness and dimension, Compton further discovered that the commodity films were still more visibly moist when compared to Xeros, with an average of 20% less %RH under the Xeros hood film.

“It outperformed everything it was up against,” remarked Compton. “We worked with Signode technicians to customize new dimensions and thickness, so we’re planning on changing over our entire hooder film inventory to their Xeros moisture control film. We hope to have better results with storing products outside by leveraging this advanced technology.”

The irony of insulating fire-retardant insulation from water isn’t lost on Compton, particularly as Owens Corning moves aggressively to market a material still relatively new to North America.

“This is a great example of searching for something new,” he says. “With a relatively newer technology, I wanted to prove that it wasn't just smoke and mirrors - seeing it first hand and getting the data, it was clear that Xeros does a superior job of reducing moisture.”

With moisture issues less of a concern, Owens Corning can now focus more on penetrating the vast interior of the North American market with a superior insulation solution.
